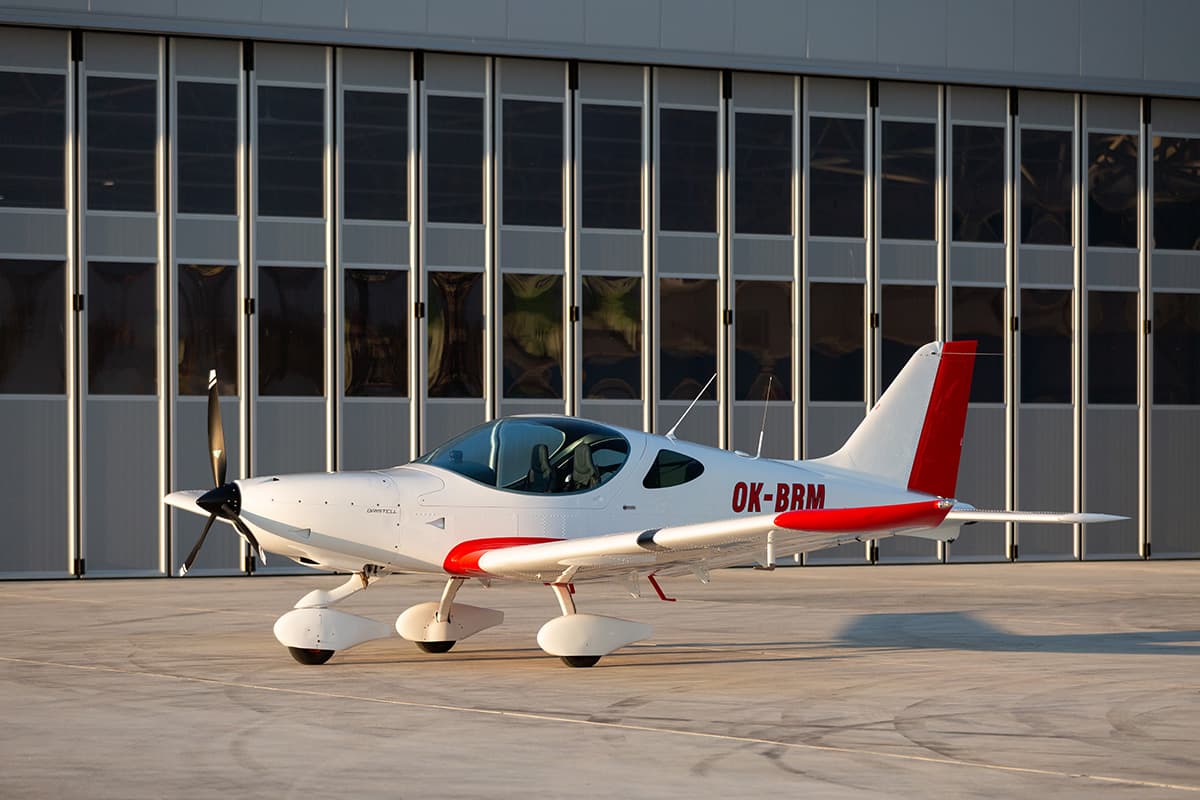

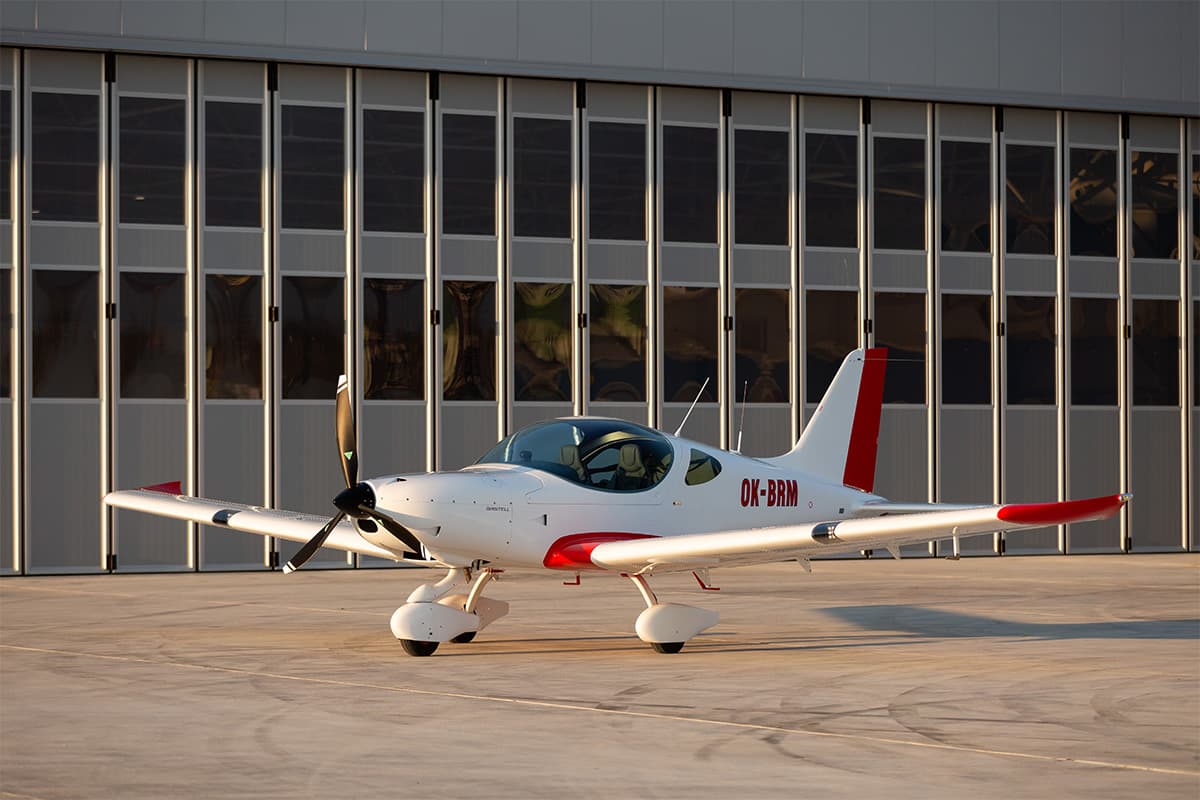

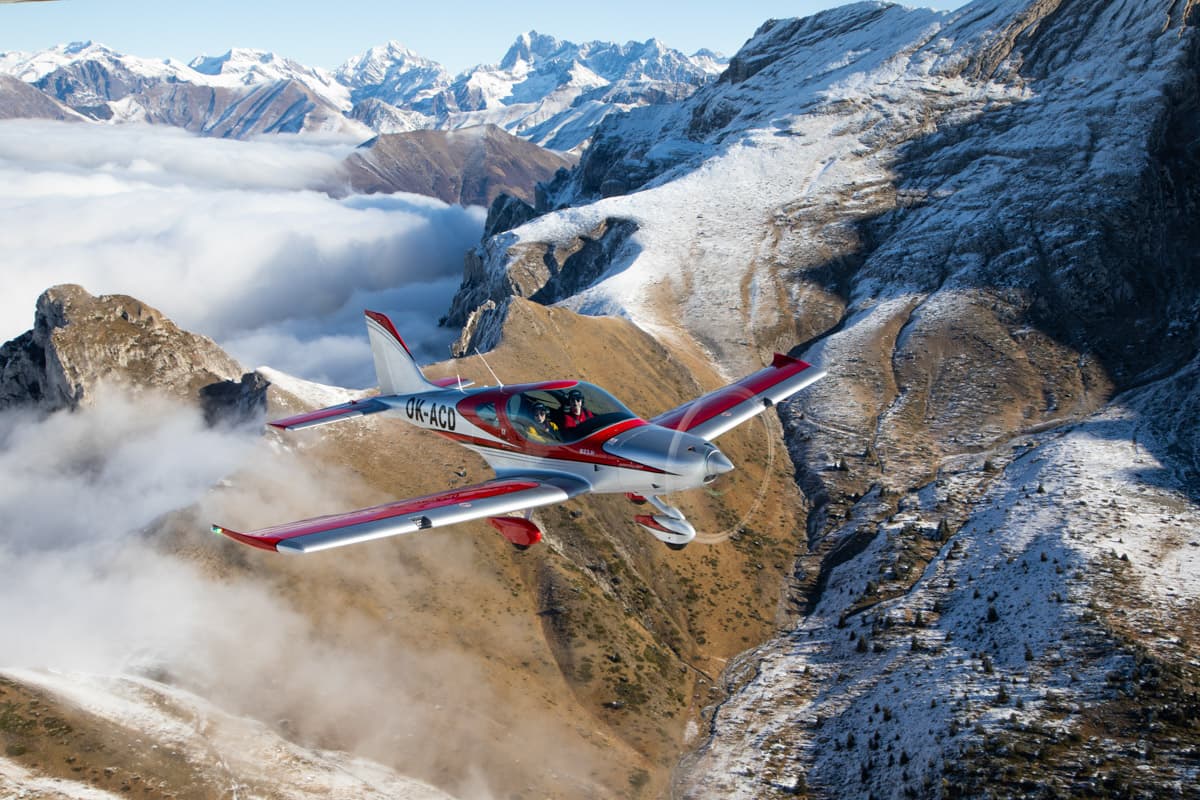

Bristell B23
Certified beyond
its class.
Engineered to EASA CS-23 and FAA FAR-23 standards — with the widest cockpit in its class, dual Garmin G3X Touch and a 600 NM range.
117 KTAS
Cruise speed
600 NM
Range
130 cm
Cabin width
CS-23 / FAR-23
Certification
Overview
A new generation of certified flight.
Designed and built by BRM Aero, the Bristell B23 is a next-generation light aircraft certified to European CS-23 and American FAR-23 standards. Night VFR certified and ready for IFR upgrade, it pairs the most spacious cockpit on the market with refined handling and effortless cross-country capability.
Highlights
Built around the pilot.
The widest cockpit in its class
130 cm of shoulder room — roomy, highly ergonomic, and comfortable for hours in the air.

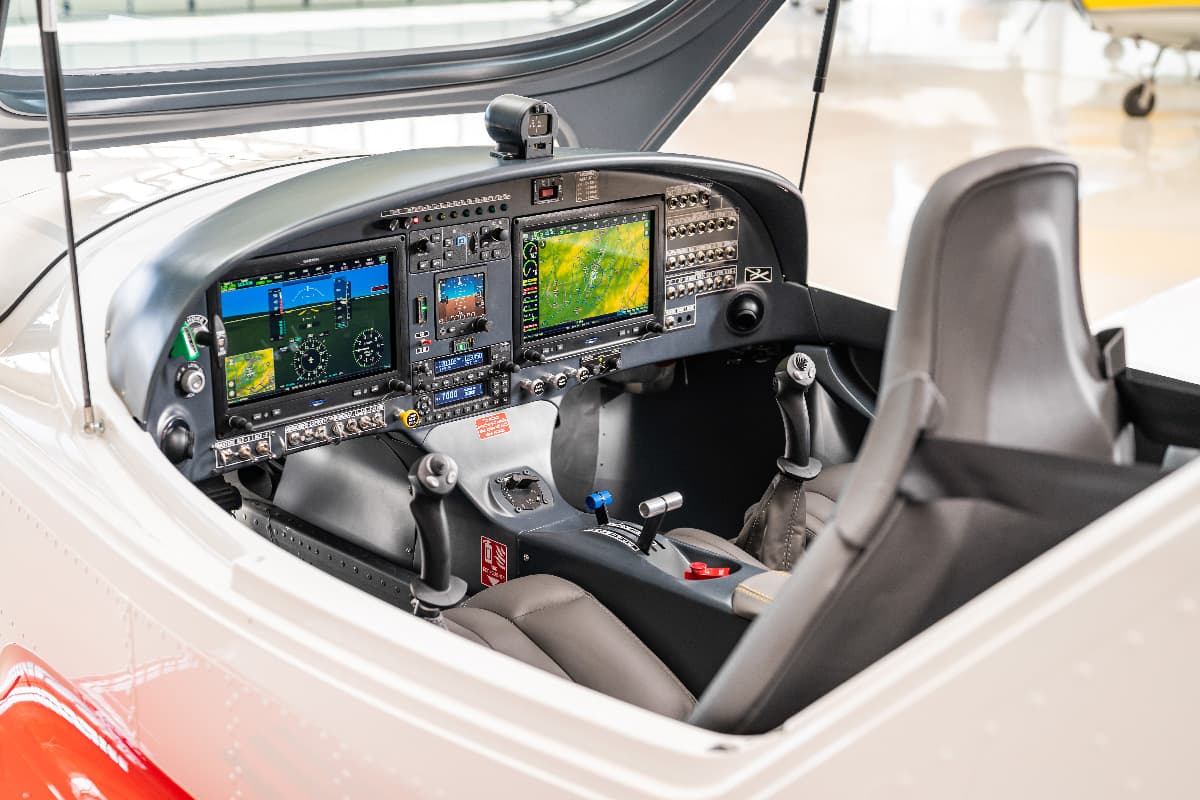

Full-glass cockpit

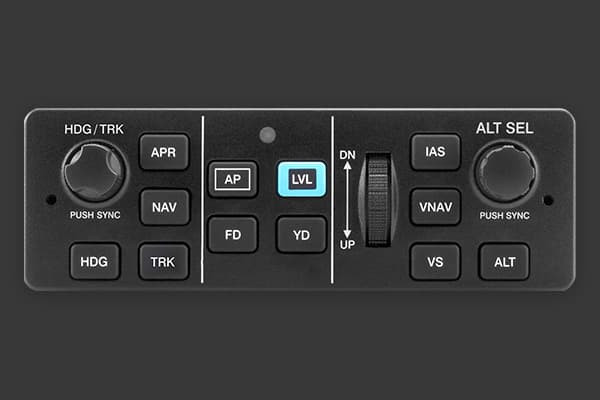

Dual Garmin G3X Touch with Synthetic Vision, GMC 507 autopilot and ADS-B transponder.
Fly any time, even at night
Night VFR certified out of the factory — and ready for the IFR upgrade when you are.

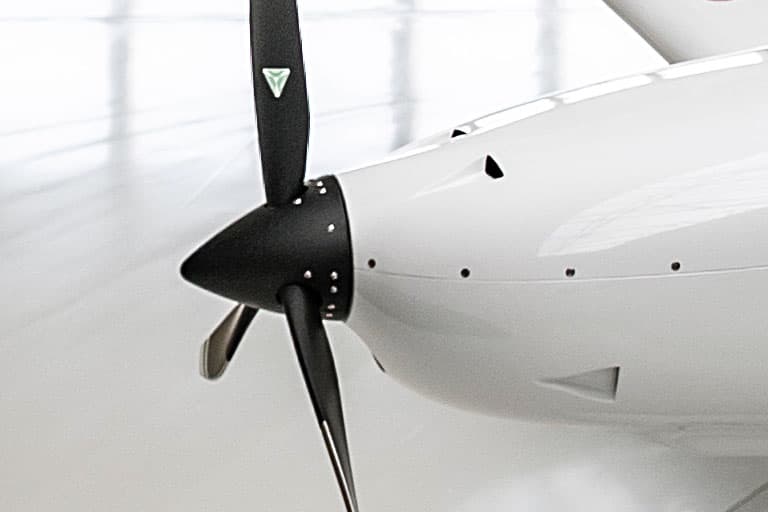

Constant-speed propeller
MT 3-blade hydraulic constant-speed propeller for optimum performance in every phase of flight.

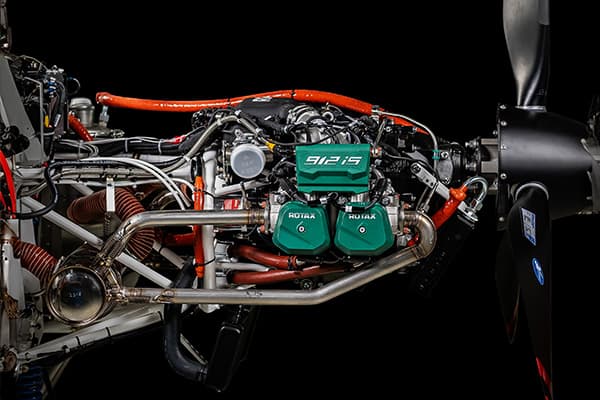

Rotax 912 iSc
100 HP of proven, fuel-injected reliability — running on Avgas or Mogas.

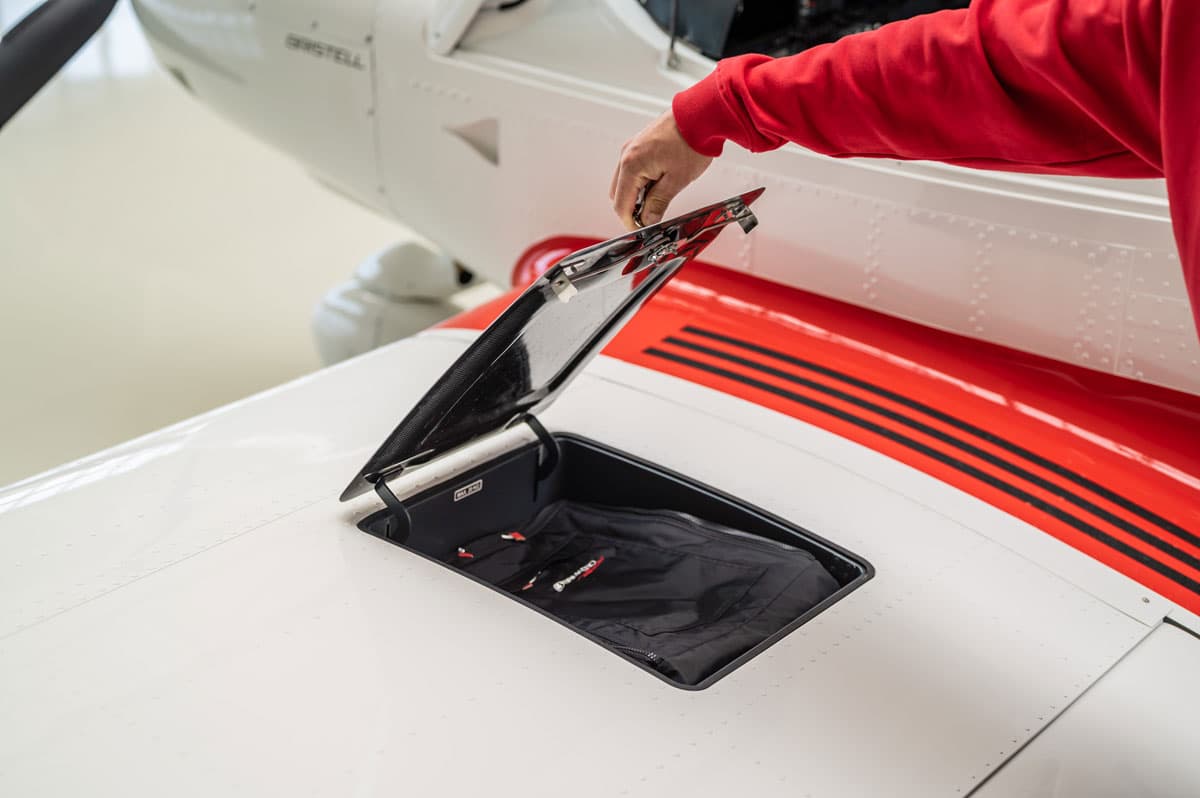

55 kg of luggage
Dedicated compartments in the fuselage and both wings — pack for the weekend, not just the flight.

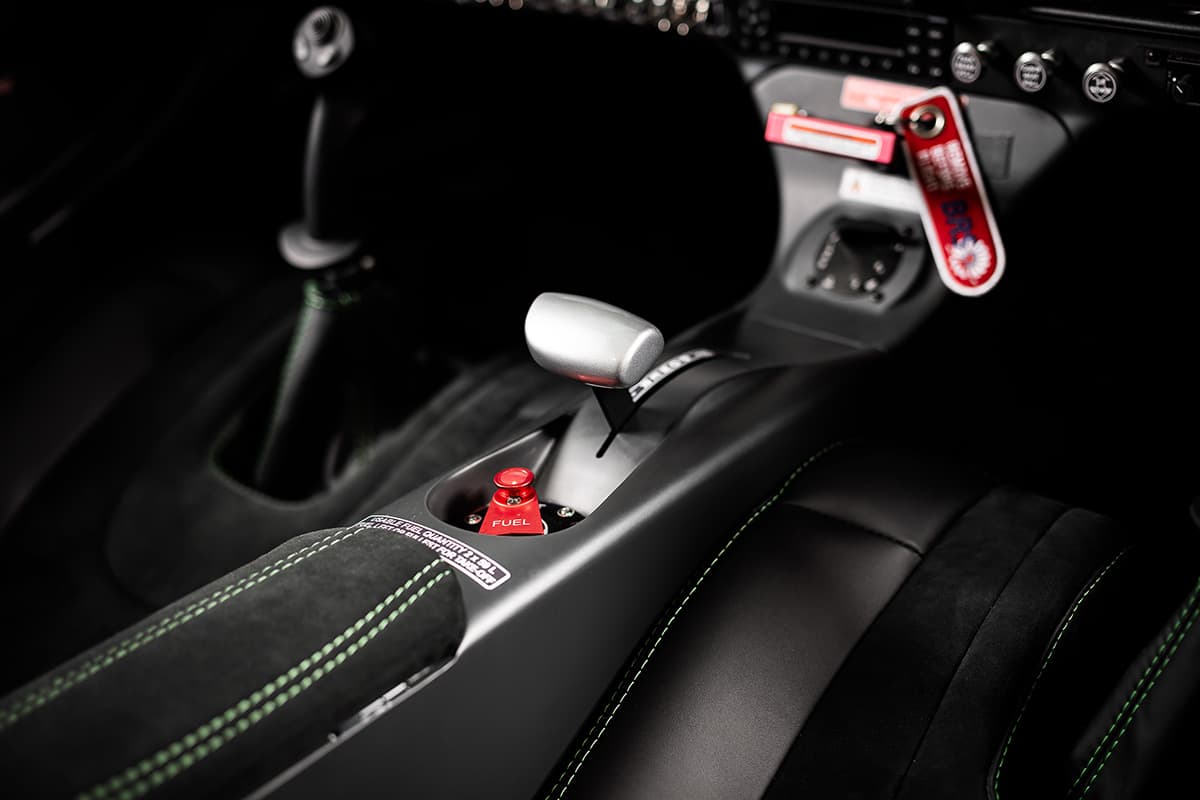

Interior
Finished like a sports car.
Alcantara surfaces, precision stitching and controls that fall naturally to hand. Every B23 cabin is trimmed to order — your materials, your colors, your cockpit.
Performance
The numbers that matter.
117KTAS
Cruise speed
700ft/min
Rate of climb
600NM
Range
365m
Take-off roll
Technical Specifications
Every detail, on record.
Dimensions
- Wingspan
- 9.274 m
- Length
- 6.585 m
- Height
- 2.36 m
- Wing area
- 11.75 m²
- Cabin width
- 130 cm
Weights & Capacity
- Max take-off weight
- 750 kg
- Empty weight
- 450 kg
- Useful load
- 300 kg
- Fuel capacity
- 120 L
- Luggage
- 55 kg
- Seats
- 2
Performance
- Cruise speed
- 117 KTAS
- Never exceed speed
- 156 KCAS
- Range
- 600 NM
- Rate of climb
- 700 ft/min
- Take-off roll
- 365 m
- Landing roll
- 146 m
- Load factor
- +4 / −2 g
Powerplant
- Engine
- Rotax 912 iSc
- Power
- 100 HP
- Fuel
- Avgas / Mogas
- Propeller
- MT 3-blade constant-speed

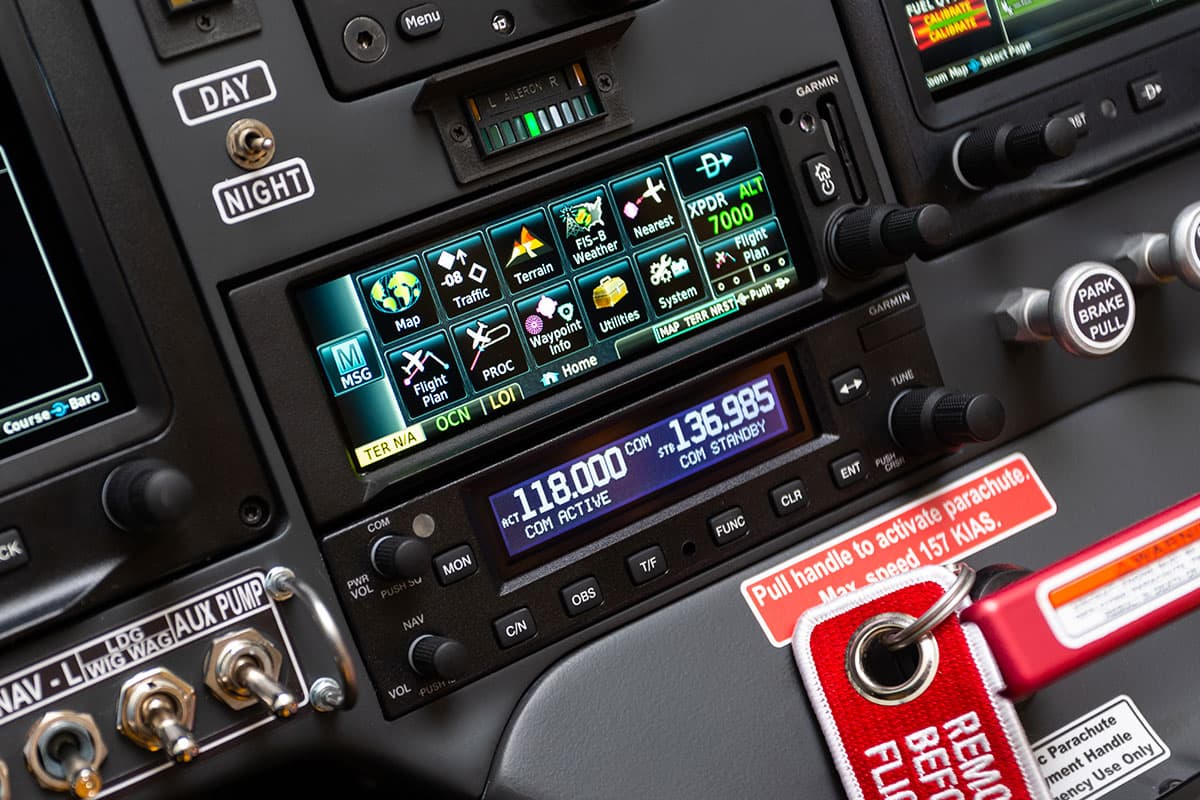

Avionics
- Dual Garmin G3X Touch with Synthetic Vision
- Garmin GNC 255 NAV/COM radio
- Garmin GTX 345 ADS-B transponder (WAAS/GPS)
- Garmin GMC 507 autopilot
- L3 ESI-500 / Garmin GI 275 standby
- PM3000 stereo intercom
- Kannad 406 ELT
Safety & Equipment
- BRS ballistic parachute system
- AmSafe 4-point seat belts
- Dual hydraulic Beringer brakes
- Electric flaps and trim
- Adjustable rudder pedals
- LED cabin lighting

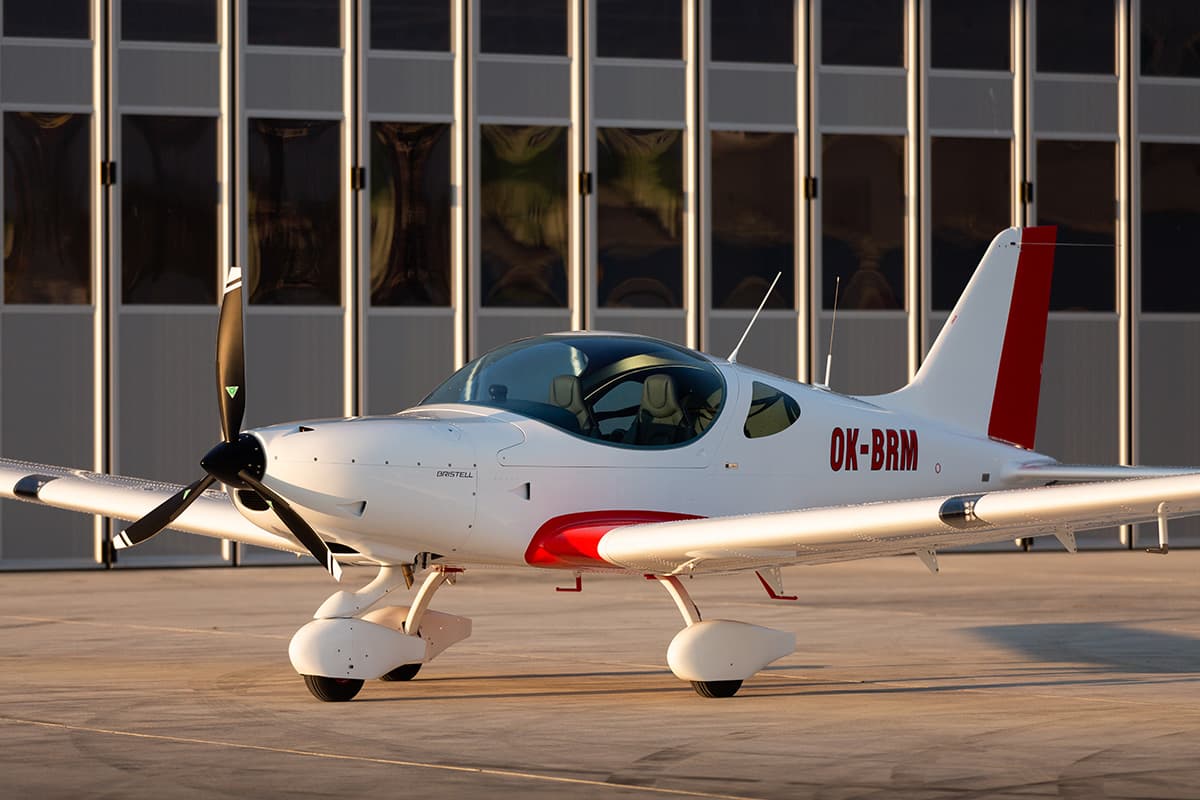

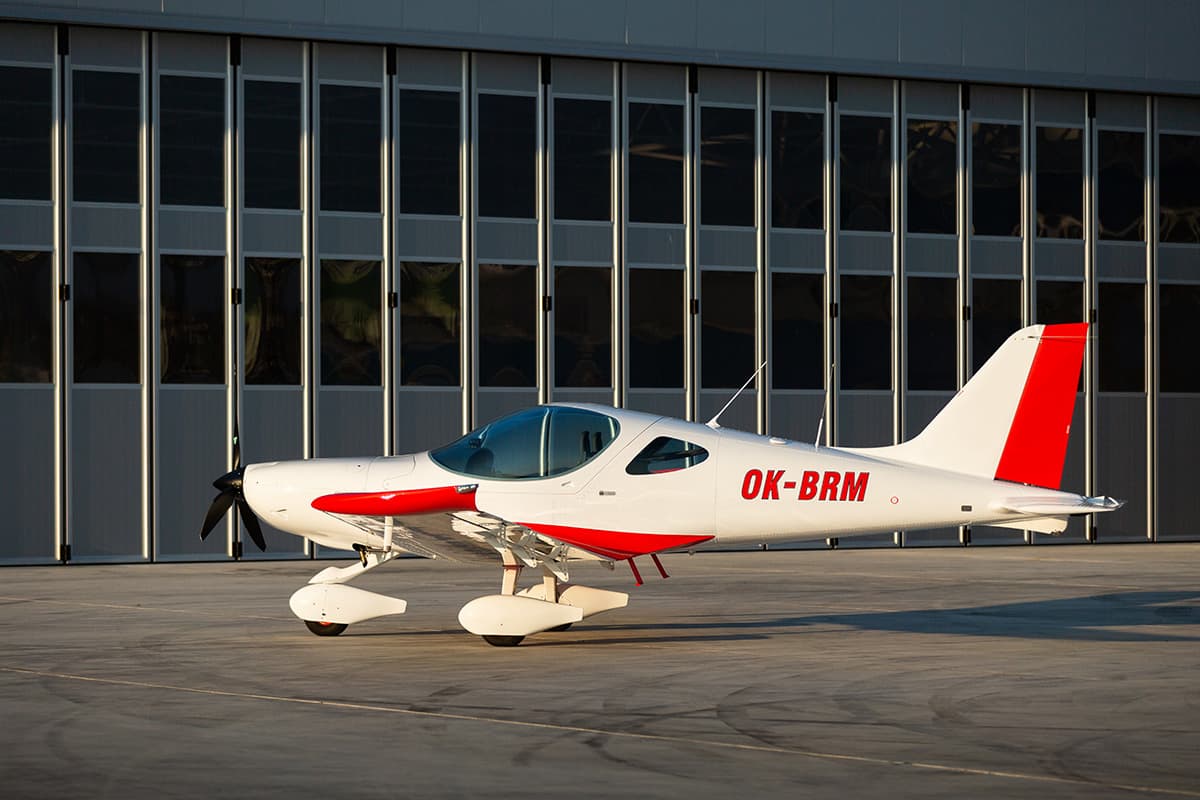

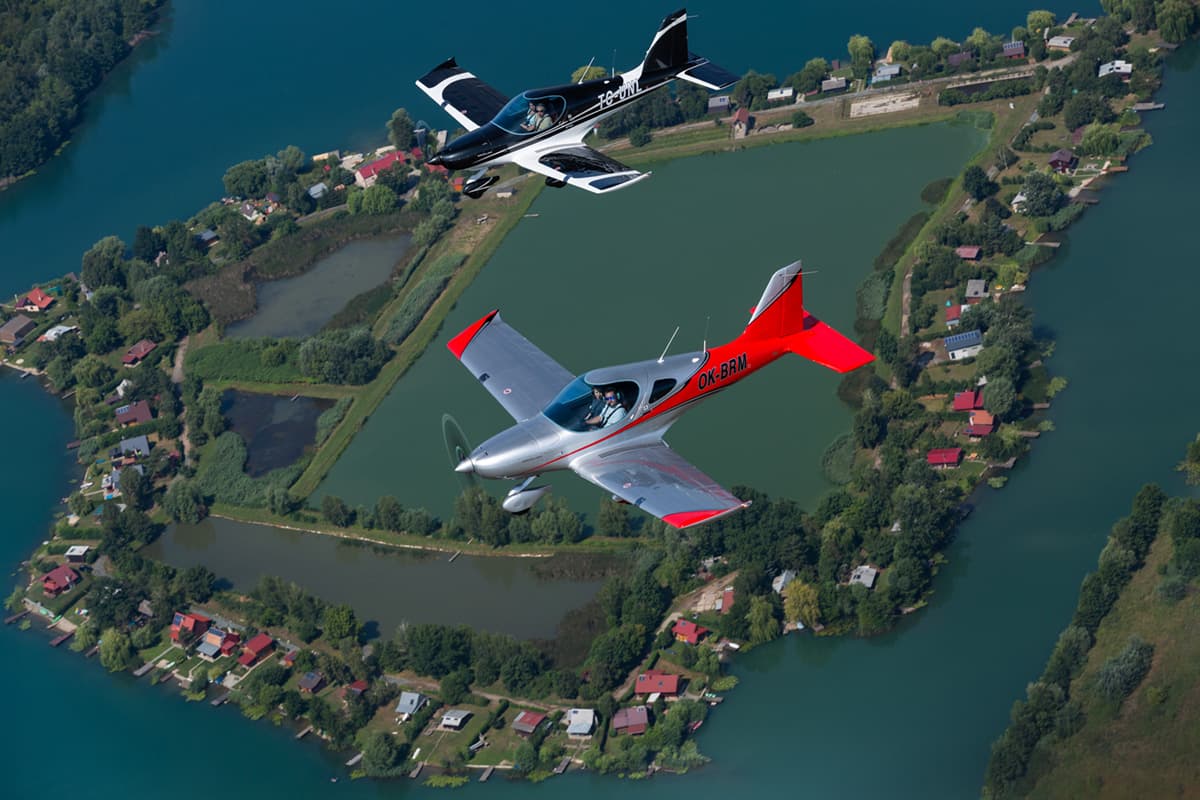

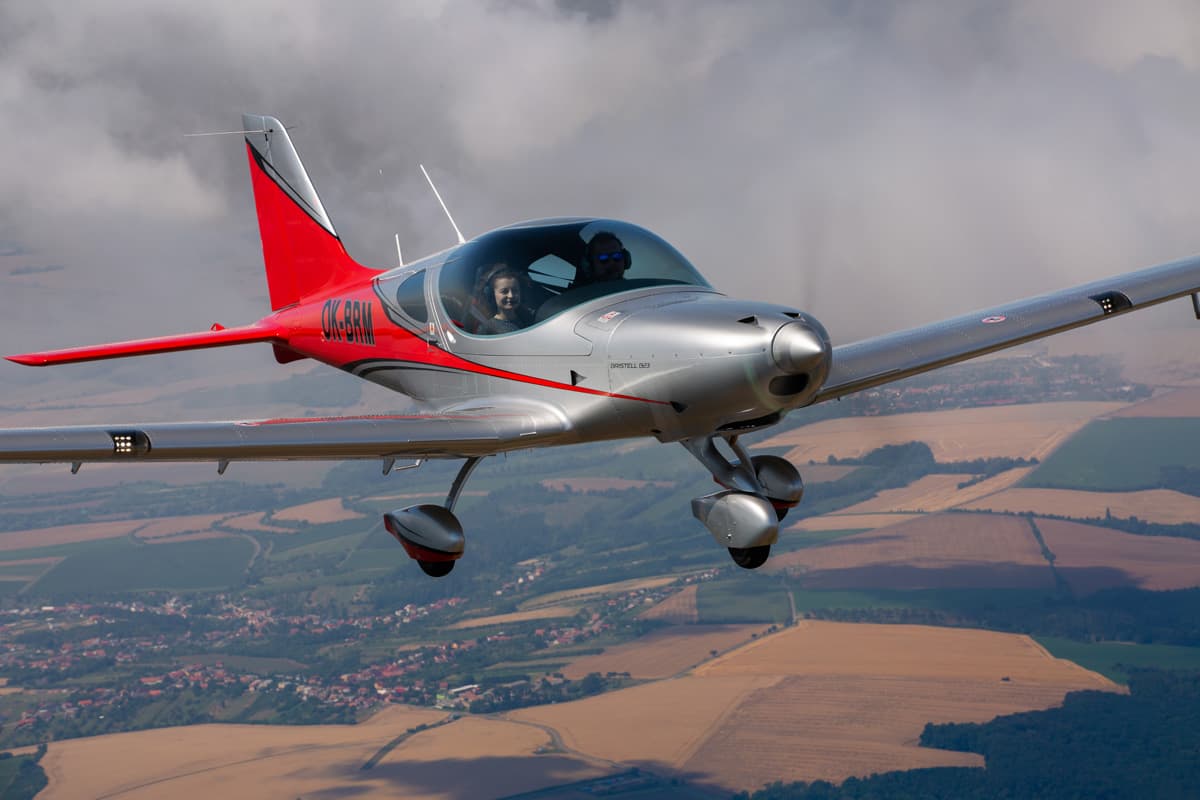

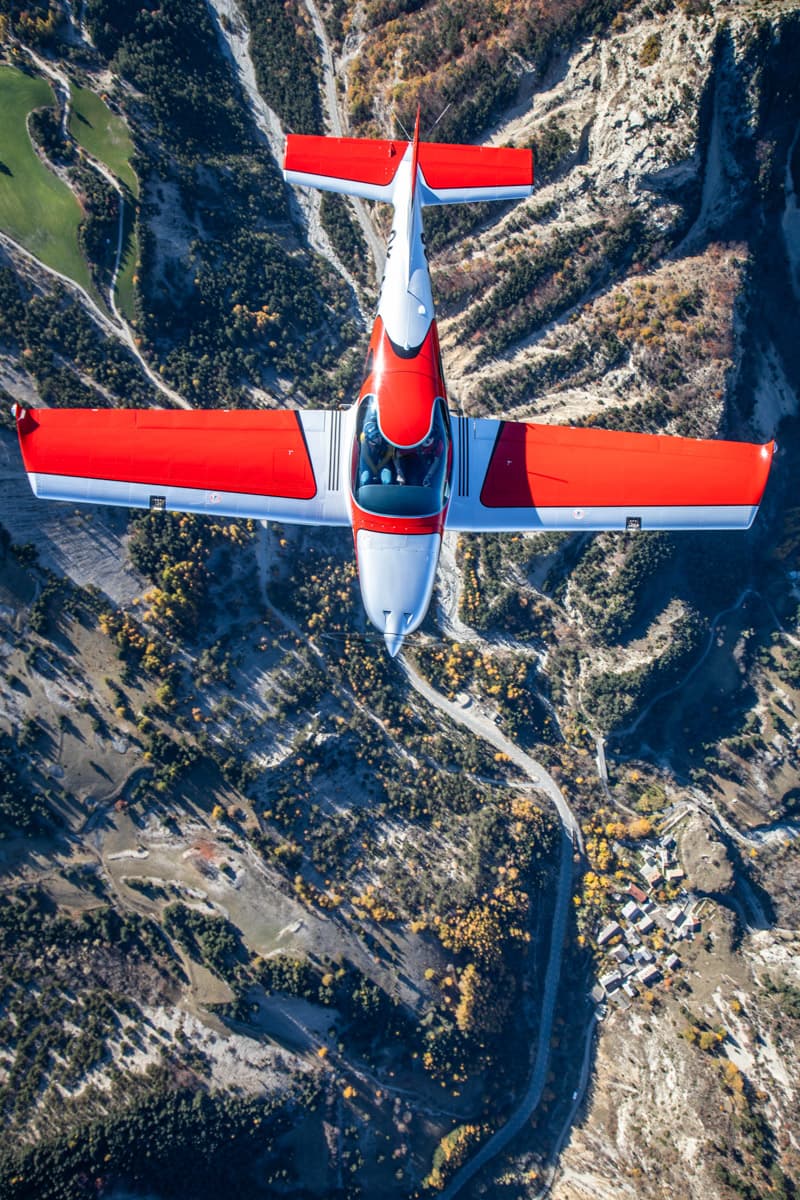

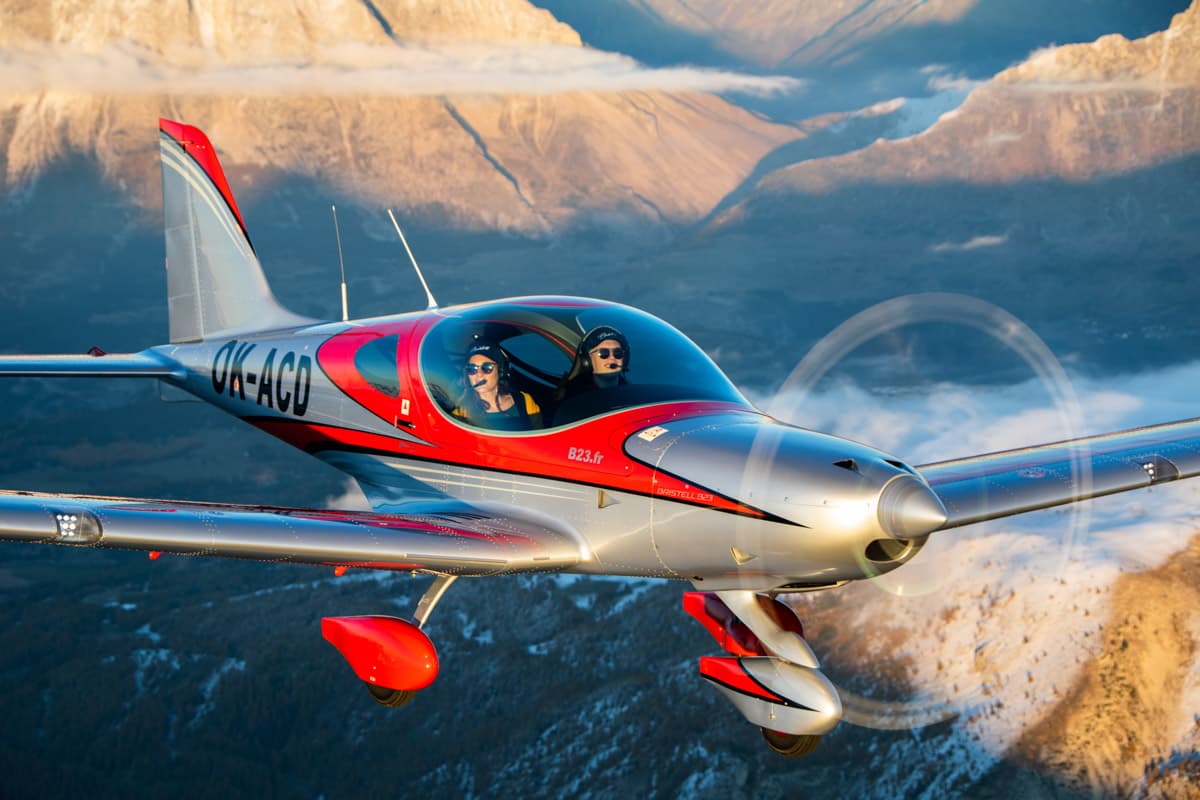

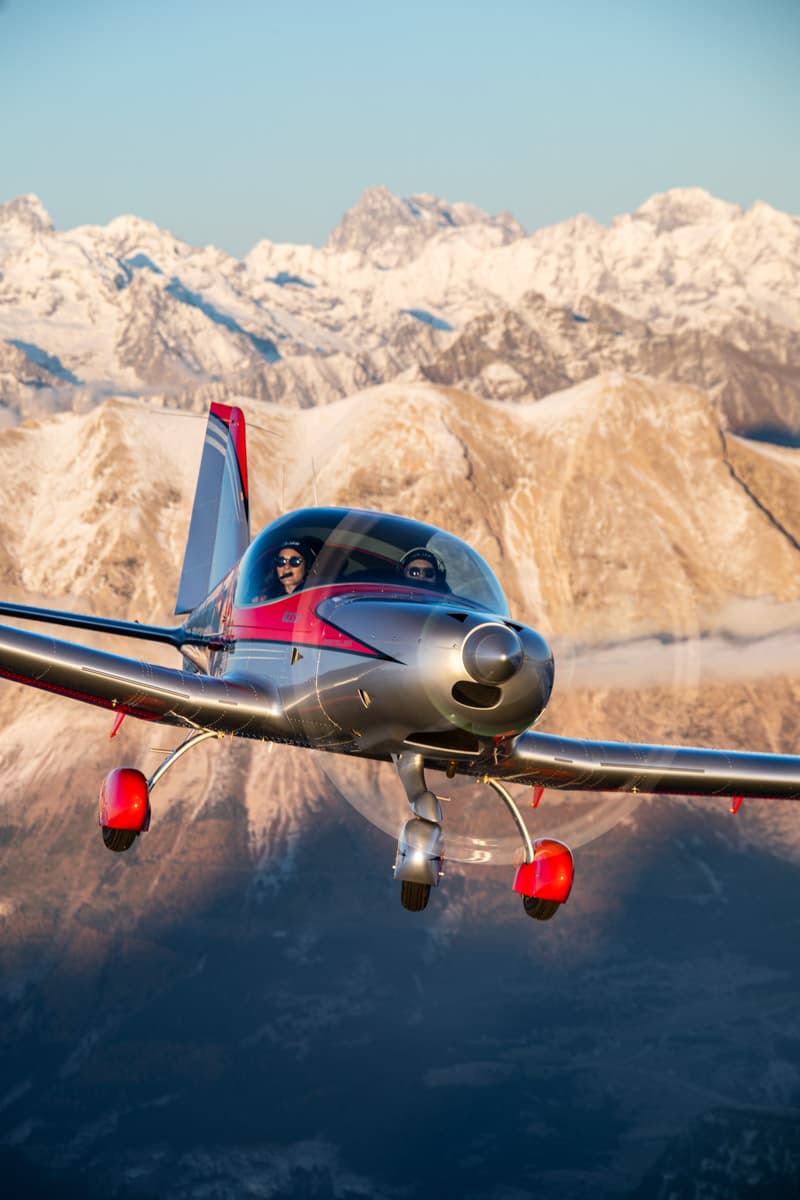

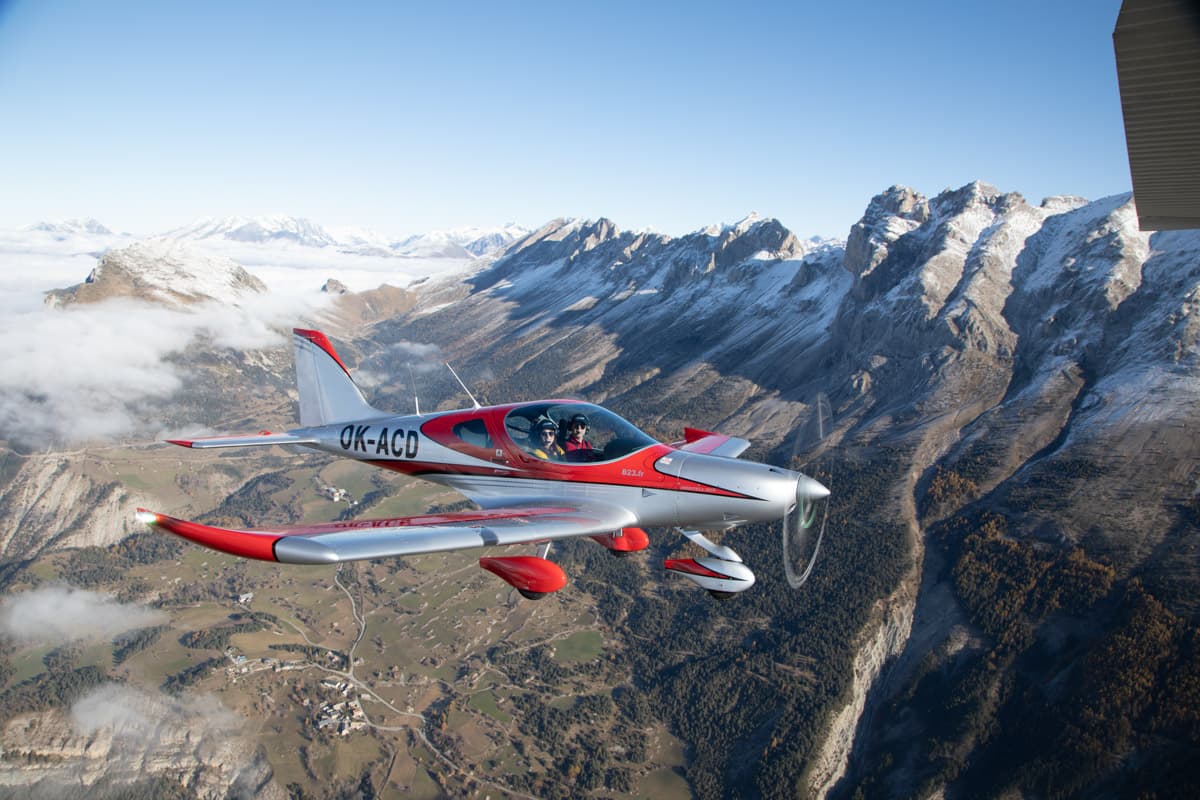

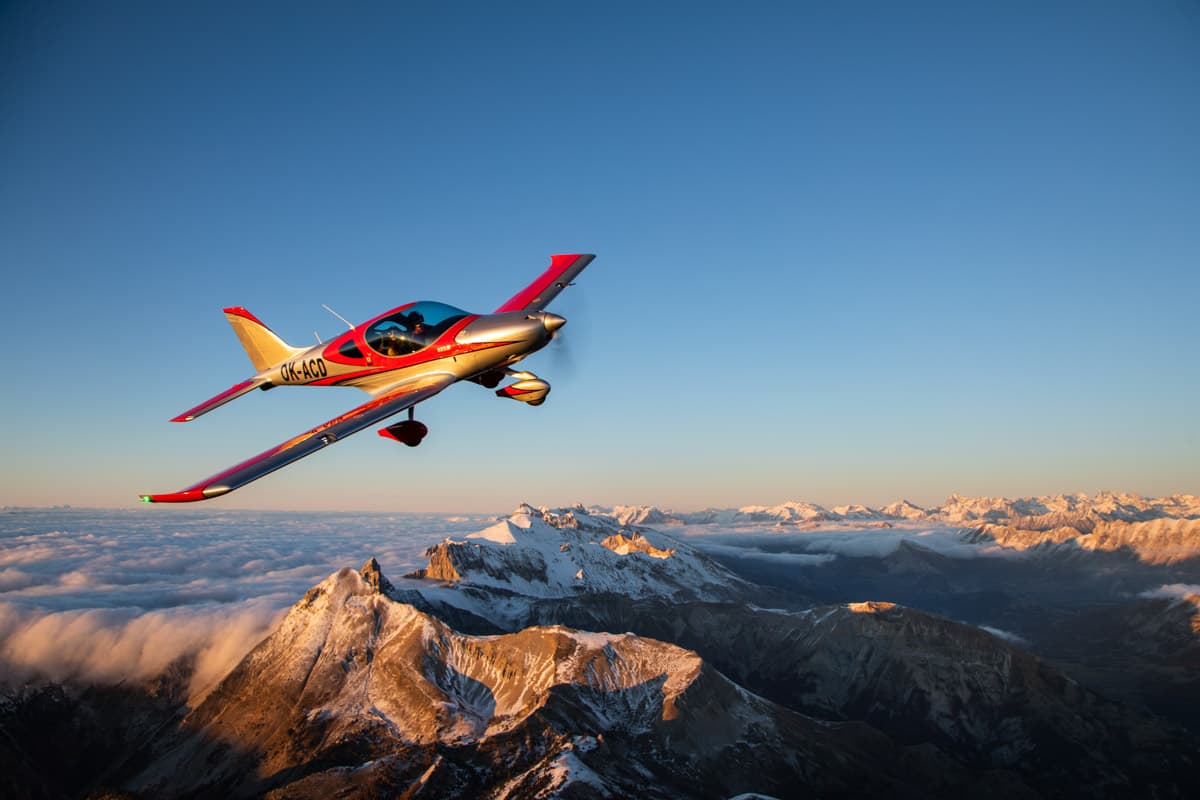

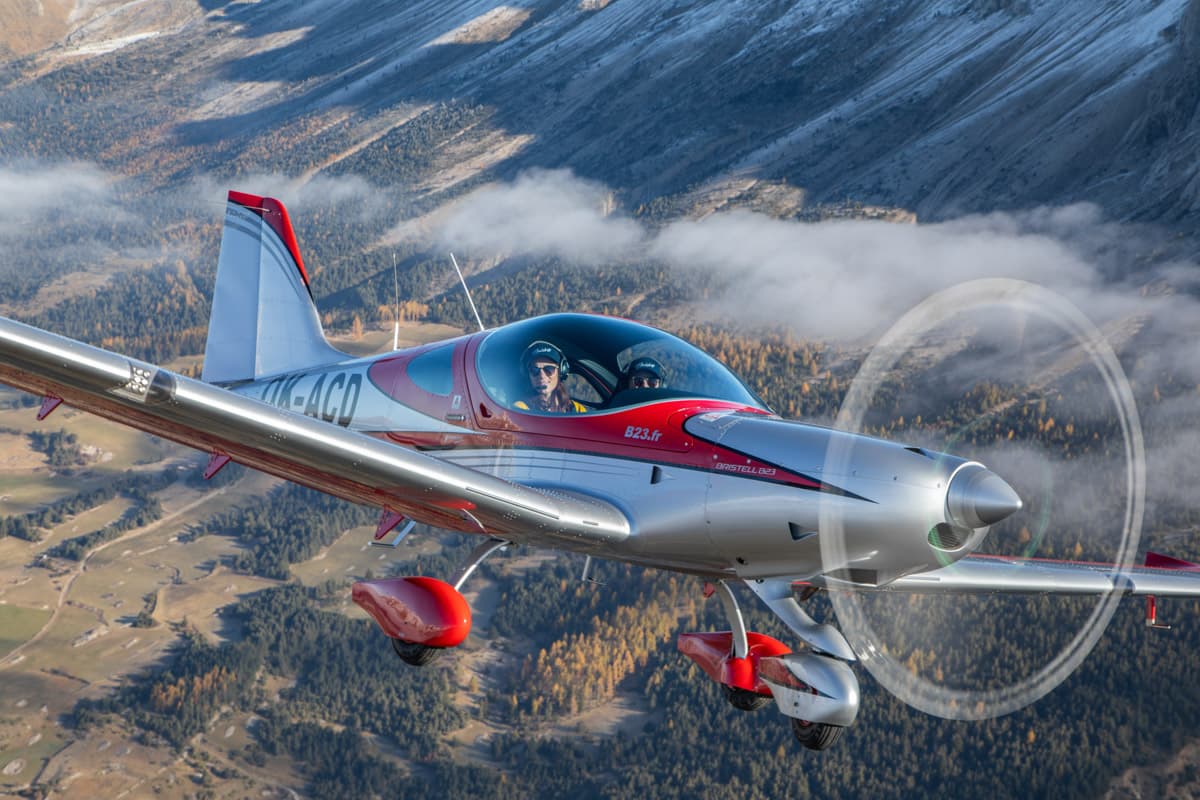

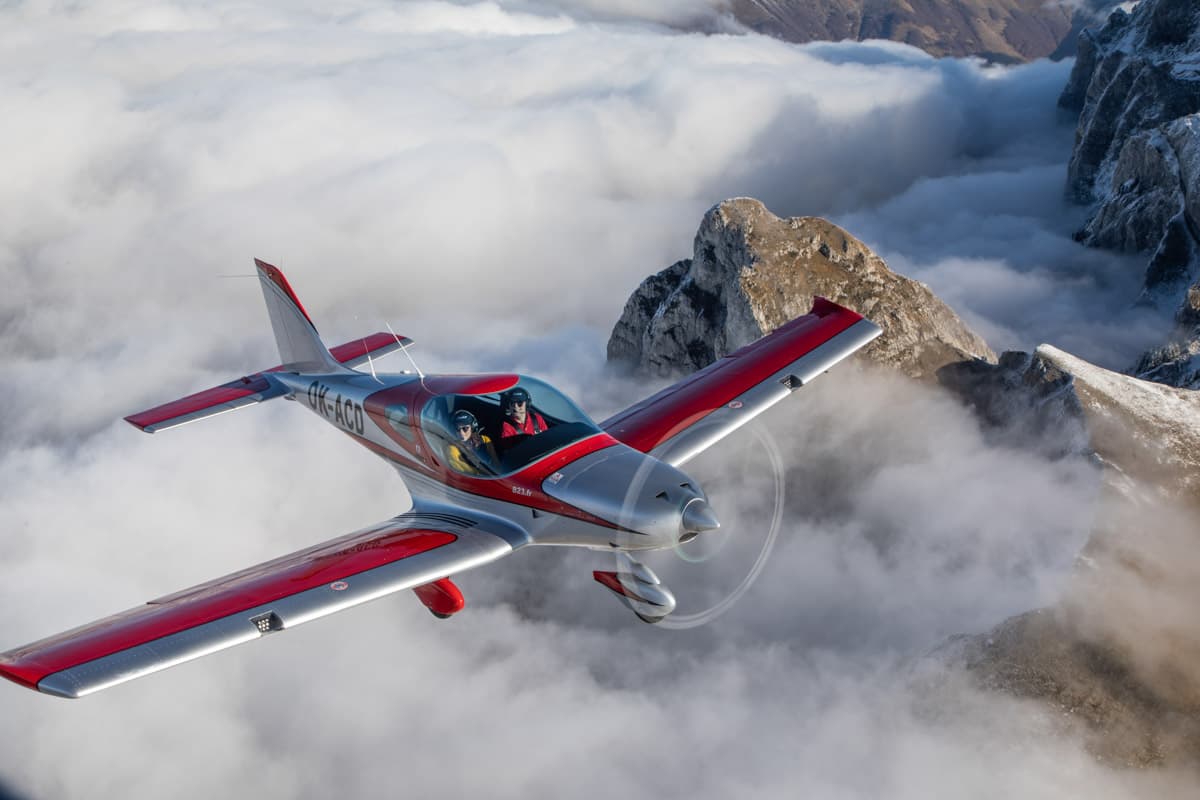

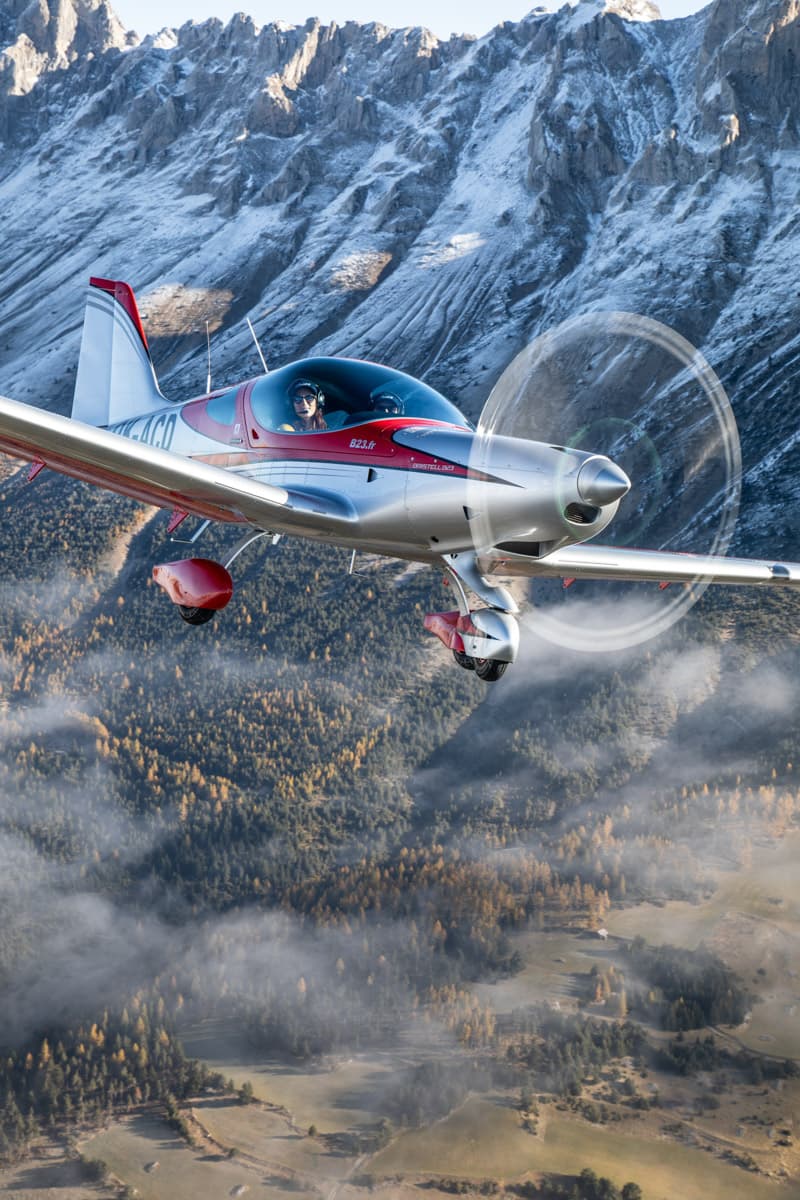

Gallery
From every angle.
Bristell B23
Your B23 starts here.
Fly it before you buy it — book a demo flight, or start building your own configuration today.
Starting from $386,000 · final price depends on configuration
